Siemens Level Measurement Product Range.
- Siemens provide level solutions for just about any process application you might have. From point level measurement using RF Capacitance switches, Electro-mechanical and Ultrasonic switches. Continuous level measurement controllers, Ultrasonic transmitters, Radar transmitters and various displays and controllers. If you wish to discuss your application/s, please contact PRTS to assist with selecting the right product.
Siemens Pressure Product Range.

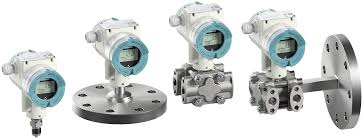

- Siemens range of SITRANS P transmitters are available for gauge , absolute pressure and differential pressure flow and level applications in the full spectrum of process industries. They also provide a wide range of special process seals and connections as well as a large range of manifolds for safe isolation from your process. If you wish to discuss your application/s, please contact PRTS to assist with selecting the right product.
Siemens Flowmeter Product Range.
- The Siemens SITRANS FM electromagnetic flowmeter range come in a large range of configurations that can measure any conductive fluid from water to heavy mining slurries or harsh chemicals.
- The SITRANS MAG8000 series are a battery powered flowmeter primarily utilised for remote water monitoring applications, such as irrigation and district water metering, with optional NMI certification. They can be supplied in either integral or remote transmitter variations and feature inbuilt pulse outputs, Modbus 485 communications for integration into existing telemetry systems for network monitoring. Other options include an external 24vdc power supply input or additional battery packs for higher power usage applications. For installations in IP68 environments that require an output, we provide the unit with an M12 4 pin connection plug and pot the transmitter housing to further protect the electronics.
- The SITRANS FMS500 is a magnetic flow meter sensor suitable for volume flow measurement of liquids (conductive) and is the ideal product for applications in water abstraction, wastewater treatment, water distribution networks, and irrigation. The rugged, fully welded design supports direct burial, constant flooding and to stand up a wide range of harsh chemicals found in water-based applications in many different industries. Available in sizes from DN15 to DN1200 and when connected to the compatible transmitter SITRANS FMT020, (12-42vdc or 100-240vac supply options) can either be mounted remotely or as an integral unit. This forms the magnetic flow meter system SITRANS FM520 which can be used in almost all general-purpose water applications. Siemens unique SENSORPROM™ Technology provides an automatic upload of startup settings and calibration data for easy commissioning. No more K factors or Line sizes need to be programmed before use! Additional features and options include AS/NZS 4020 drinking water approvals. NMI (Pending). HART with 4 … 20 mA output, active or passive. Modbus RTU / RS485. PROFIBUS PA. PROFIBUS DP. PROFINET. EtherNet/IP communication options. They also have Comprehensive self-test and verification. A full self-test functionality is available as standard. System operation data can be reported and recorded using the advanced version. Verification is possible as a service option by choosing the licensing of the verification process.
- The SITRANS FMS300 is designed to meet the most common specifications within the chemical and process industries. The field proven flow sensor with high chemical resistance is also the ideal solution for the tough and challenging applications such as process slurries. With a large variety of liner materials. Soft rubber, EPDM, Ebonite and Linatex and Optional: PTFE, PFA and electrodes in Stainless steel AISI 316Ti / 1.4571, Hastelloy C276 / 2.4819 (PFA: Hastelloy C22 / 2.4602), Platinum, Titanium, Tantalum, Ceramic coated stainless steel AISI 316Ti / 1.4571, Ceramic coated Hastelloy C276 / 2.4819. The fully welded construction provides supreme ruggedness and durability even under the toughest operating conditions. Available in sizes from DN15 to DN2200 and when connected to the compatible transmitter SITRANS FMT020, (12-42vdc or 100-240vac supply options) can either be mounted remotely or as an integral unit. This forms the magnetic flow meter system SITRANS FM320 which can be used in almost all process industry applications. Siemens unique SENSORPROM™ Technology provides an automatic upload of startup settings and calibration data for easy commissioning. No more K factors or Line sizes need to be programmed before use! Additional features and options include. HART with 4 … 20 mA output, active or passive. Modbus RTU / RS485. PROFIBUS PA. PROFIBUS DP. PROFINET. EtherNet/IP communication options. They also have Comprehensive self-test and verification. A full self-test functionality is available as standard. System operation data can be reported and recorded using the advanced version. Verification is possible as a service option by choosing the licensing of the verification process.
-
The SITRANS FM MAG 1100 is an electromagnetic flow sensor in a compact wafer design designed for flow applications in process industries, with a particular focus on applications where highly corrosive and high temperatures are present (up to 200 Deg C with the ceramic liner option).Available in sizes from DN2 to DN100, this enables the user to measure extremely low flows for dosing of chemicals used in the food and beverage and pharmaceutical industries as well as other harsh applications.
There are several liner and electrode combinations. Ceramic with either ZrO2, Al2O3 and Platinum with gold/titanium alloy electrodes. Or PFA with Hast C electrodes. The meter can be mounted between EN 1092-1 (DIN 2501), ANSI B16.5 class 150 and 300 or equivalent flanges, or with NPT pipe adaptors for DN2 to DN10 sizes. They also come in a range of hygienic connectors for the food grade “1100F” series. The tubes can come in in compact or remote versions using the MAG 5000/6000/6000 I Ex (ATEX or FM). The MAG 5000 and 6000 transmitters are engineered for high performance, easy installation, commissioning and maintenance. In addition to the standard transmitter, there is a rack/cabinet mountable version (19”). The other standard features include the SENSORPROM™, in-situ verification and in the 6000 series add-on bus modules for HART, FOUNDATION Fieldbus H1, DeviceNet, Modbus RTU/RS 485, PROFIBUS PA and DP.
- The Siemens SITRANS FC Coriolis offers a new portfolio of flowmeter systems providing extremely accurate mass flow and density measurement for a wide range of fluids and gas using the Coriolis principle of measurement. This is achieved by using a pair harmonically matched U shaped tubes that are then resonated via an excitation coil mounted in the middle of the tubes. As fluid enters the vibrating tube, it's forced to move in a curved path, creating an opposing force (Coriolis force) that makes the tube deform or "twist". Sensors mounted on the entry and exit of the tubes detect the time/phase shift between the inlet and outlet of the tube; this shift is directly proportional to the mass flow rate, while the tube's frequency change indicates fluid density, making it highly accurate for liquids and gases. Due to the complex nature of these flowmeters, please contact PRTS to assist with selecting the right model suited to your application/s.
- The Siemens SITRANS FS ultrasonic flowmeters are for measuring the flow of organic and inorganic liquids with laminar and turbulent flows as well as in the transition range via transit time of flight. This is achieved by mounting ultrasonic transmitters and receivers externally on the pipework FS200 series (which must be clean and made from a single material with a known thickness). Or inline with the FS100 series. A soundwave is sent from the transmitter, through the fluid and then the signal is picked up by the receiver mounted either opposite the transmitter (single pass) or bounced off the opposite wall and picked up on the same side of the transmitter via the receiver which is mounted at 90 degrees from the signal 'bounce' point. The time it takes between sending and receiving this signal is proportional to the flowrate and can then be measured and the signal transmitted via various output options. Notes to consider: The fluid must be clean and free of particles including entrained gas bubbles. Mounting of the TX/RX is critical to ensure accurate measurement is achieved, this includes preparing the pipe surface so that it is clean and free from rust or scale (clamp on type). As with other products in the Siemens range, a wide variety of systems are available, each with specific characteristics. So please contact PRTS to assist with selecting the right model for your application/s.
- The Siemens SITRANS FX Vortex flowmeters provide accurate standard volumetric and mass flow measurement of steam, gases and liquids as an all-in-one solution with integrated temperature and pressure compensation. The FX series of Vortex meters measure flow by detecting the frequency at which alternating vortices are shed from a bluff body (von Kármán vortex shedding principle), which is hit by the medium. The vortices create a differential force across a sensor wing, flexing it at a frequency proportional to the flow rate measured by the meter. The movement of the oscillating wing is transmitted to the SITRANS FX electronics by a dual piezoelectric crystal sensor mounted in the wing. As with other products in the Siemens range, careful selection and sizing calculations need to be carried out before a suitable model for your application/s can be specified. So please contact PRTS for assistance to select the right model.
- The Siemens SITRANS FP differential pressure transmitter and primary element range provides many options for flow measurements, from traditional orifice plates, averaging pitot tubes as well as many other third party primary elements such as venturi tubes, cone, wedge and flow nozzles. As with other products in the Siemens range, careful selection and sizing calculations need to be carried out before a suitable model for your application/s can be specified. So please contact PRTS for assistance to select the right model.
Siemens Temperature Product Range.
- Siemens range of SITRANS T Temperature measurement solutions have devices for every requirement: Siemens temperature portfolio includes sensors, transmitters for head, rail and field mounting and complete measuring points. Combine that with an entire range of communications options, giving you complete integration of field devices into your plant. Highly accurate, flexible, fully supported: SITRANS T temperature sensors and transmitters do everything you need them to. If you wish to discuss your application/s, please contact PRTS to assist with selecting the right product.
Siemens Weighing Product Range.
- Siemens offers a comprehensive range of industrial weighing products, primarily under the SIWAREX brand, including advanced electronics for SIMATIC systems, robust load cells (compression, tension), belt scales (like Milltronics series), weigh feeders, and solids flowmeters, designed for high accuracy and integration in bulk material handling, food processing, pharma, and logistics, ensuring precision for tasks like batching, filling, and inventory. If you wish to discuss your application/s, please contact PRTS to assist with selecting the right product.
