Valves
Burkert process control and solenoid valve range.
- Now a Bürkert classic, the Type 2000 angle seat valve has been playing a key role in processes for multiple decades, and we cannot imagine our portfolio without it. Available in sizes from DN10 to a class leading DN80 and either stainless steel or gunmetal, with multiple process connection options, including weldlets for steam applications.
- Burkerts range of solenoid valves is extremely comprehensive, with solutions for just about every application, from simple water or pneumatic control to advanced chemical, steam, high pressure and even cryogenic processes.
- Type 2671 and 2674 2/2-way butterfly valves are available in various designs (wafer type, lug type) and in different materials, to meet the requirements of various applications and processes. They can be manually operated or controlled by various actuators and positioner combinations, such as those mentioned below.
- Type 2051/2052 Quarter Turn pneumatic actuators are available in numerous sizes with torque ratings up to 6812Nm @ 8Barg. Both meet NAMUR and ISO 5211 interfaces for mounting options of control valves/positioners/solenoids.
- Type 3003/3004/3005 Quarter Turn electrically operated actuators are available in multiple voltages, 24VAC/DC, 110VAC, 240VAC and 400VAC providing a wide range of options depending on the end users available power supply. They also come with adjustable limit switches and numerous control input options, both analogue for modulating control and digital for on/off.
-
Bürkert AirLINE systems are modular, electropneumatic valve islands designed for process automation control cabinets or field mounted. They integrate pneumatic components with electronic communication. Key features include direct integration with systems like Siemens SIMATIC, Industrial Ethernet protocols, such as PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT as well as Fieldbus protocols PROFIBUS DP, CANopen, CC-LINK IE Field, allowing for control of processes in a variety of industries and system integration. They also come with advanced diagnostics via an LC display, and specialized versions for hazardous or hygienic environments.
PKP Valve and Flow Conditioning Product Range
- Standard and high pressure hand isolation and gate valves. Variants are available in a wide range of materials from carbon steel, brass and 316Ti SS. 1/8" to 2" in G or NPT threads, up to 630 bar and 250 Deg C.
- Flow limiters and conditioners for high flow rates. Various designs suitable for pipes sizes from DN15 to DN100, flow limiting without power supply with factory set flow rates, threaded and flanged versions in Bronze, Brass or Stainless Steel.
- Y-Strainer with magnetic separator. Bronze or stainless steel versions from G1/2 through to G2, with mesh sizes 0.25, 0.5, 0.8 and 1mm. 40bar max pressure and up to 180 Deg C.

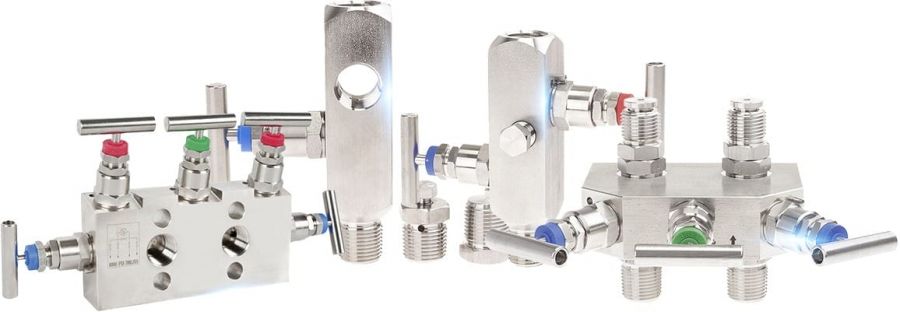

Wika Instrument Valve/Manifold Range.
-
WIKA offers a comprehensive range of instrumentation valves designed to isolate, vent, or drain pressure measuring instruments in various industrial applications. These valves help ensure safety during maintenance, commissioning, and calibration processes.

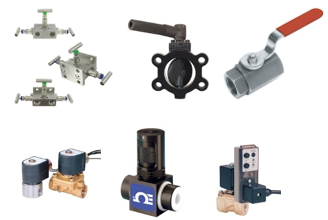

Dwyer Omega Valve Product Range.
-
Dwyer Omega (the combined entity of Dwyer Instruments and Omega Engineering) offers a comprehensive range of valves, including solenoid, butterfly, zone (HVAC), lockout safety, drain, and needle valves, in various materials and configurations to suit a wide range of industrial and commercial applications.
